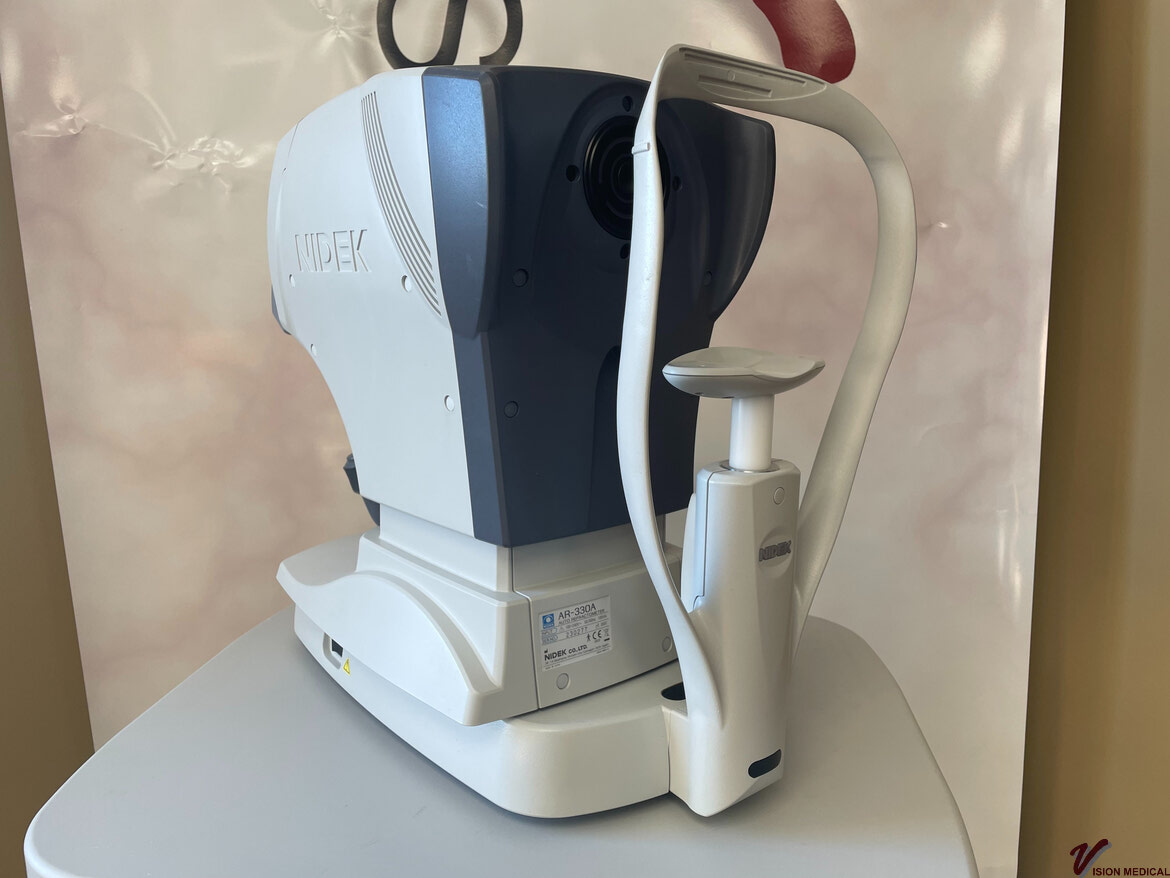

Nidek AR-330A Auto Refractor
(Pre-owned item 1 only at this time)
The combination of new measuring principle - Pupil Zone Imaging Method - and
unique technology - SLD - offers high accuracy and reliability in refraction
measurement.
The NIDEK AR-330A / 310A adopts the advanced Pupil Zone
Imaging Method for refraction measurement, which analyzes a
wider area (Max. ø4 mm) to obtain more reliable and realistic
data that is closer to subjective refraction.
Highly Accurate Refractometer
1. Pupil Zone Imaging Method
The AR-330A / 310A uses the SLD (Super Luminescent Diode) and
highly sensitive CCD device for improved image quality. The
image with the SLD is sharper and clearer than those with the
LED, and the system offers greatly improved measurement
capability even with dense cataract and IOL implanted eyes.
2. SLD (Super Luminescent Diode)
LED (Normal eye) SLD (Normal eye)
LED (Cataract eye) SLD (Cataract eye)
*In-house trial data (Model eye)
Comparison of image on CCD*
Φ2.5ｍｍ
Ring Full Area
Φ4.0ｍｍ
Measuring area comparison
Conventional AR AR-330A / 310A
The AR-330A / 310A offers the widest measurement range of -30 to +25D.
Wide Measurement Range: -30 to +25D
Clear image and data display with user-friendly guidance allow easier and
more reliable operation. Projected double mire rings on the cornea helps
better observation of the corneal shape and irregular astigmatism.
The clear 5.7-inch color LCD with
tilting function offers easy operation
even for a standing operator.
Guidance mark to
lower the chinrest
Thumbnailed image on CCD (AR-330A only), which can be enlarged by
pressing button
Guidance mark to
move the main
body toward the
patient's eye
Informative 5.7-inch Tiltable Color LCD
The AR-330A / 310A can measure small pupils down to 2 mm in diameter, allowing wider
application.
Smallest Measurable Pupil Size: ø2mm
Minimum pupil diameter mark Double mire rings Tilting color LCD
By pressing the Vision Comparison button, a virtual comparison between
patients' current vision (with the unaided eye or with glasses*) and ARcorrected vision can be easily demonstrated.
Virtual Vision Comparison (AR-330A Only)
The motorized chinrest with simple up / down
buttons facilitates smoother operation.
Motorized Chinrest
The main body can be fixed with the advanced
one-touch lock.
One-Touch Lock
The auto-alignment (X & Y directions), auto-focusing (Z direction)
and auto-shooting provide faster, simpler and more accurate
measurements. When alignment is performed correctly,
measurement starts automatically.
3D* Auto Tracking & Auto Shooting
FOCUS
*Requires data transfer from a NIDEK auto lensmeter.
Up / down
buttons
Function Auto Tracking Auto Shoot Model
AR-330A
X-Y-Z Y
AR-310A
*3D : AR-330A only
Current Vision
Better Vision
Virtual Vision
Comparison
Current vision with the
unaided eye
Current vision with glasses*
AR-corrected vision
Y direction
X direction
NIDEK's Innovative Auto Refractometer for
Higher Precision and Better Operability.
High Speed Printer with
Easy Loading & Auto Cutter
The AR-330A/310A incorporates a high
speed and user-friendly printer, and the
printer paper can be changed easily.
Easy Paper Loading
Auto Cutter
Printed data sheet will be cut by the
auto cutter for quick and easy
detachment.
The desired data, such as the AR value, PD and confidence
coefficient, as well as an eyeprint for documenting patient
treatment, can be selected and printed out.
EyeCare Card System*
The AR-330A/310A incorporates the card slot for EyeCare Card
system, which provides quick and easy wireless data transfer.
*The card is optional.
Sample Printout EyePrint
Vertex Distance
Working Distance
Right Eye
AR Median Value
Left Eye
Pupillary Distance
Near Point PD
C NIDEK 2006 Printed in Japan AR-330A / 310A NODNM 5
AR-330A / 310A Specifications
Auto refractometer
Measurable range
Measurable minimum pupil diameter
PD measurable range
Auto tracking & Auto shooting
Virtual vision comparison
Chart
Display
Printer
Interface
Power supply
Power consumption
Dimensions & Weight
Standard accessories
Optional accessories
Sphere -30.00D to +25.00D (VD=12 mm)
(0.01 / 0.12 / 0.25D increments)
Cylinder 0D to ±12D
(0.01 / 0.12 / 0.25D increments)
Axis 0º to 180º
(1º/ 5º increments)
ø 2 mm
30 to 85 mm (1 mm increments)
(Near point PD: 28 to 80 mm at WD=40 cm)
X-Y-Z directions, Auto shooting Y direction, Auto shooting
Range: -20 to +20D Not available
Scenery chart
Tiltable 5.7-inch color LCD
Built-in thermal type line printer
(Easy loading and auto cutter)
RS-232C (IN / OUT)
USB
Eye care card system* *Card is optional
AC100 - 240 V ±10 %
50 / 60 Hz
100 VA
260 (W) x 481(D) x 455 (H) mm / 20 kg
10.23 (W) x 18.93 (D) x 17.9 (H) " / 44.1 lbs.
Spare printer paper, Power cord, Dust cover,
Chinrest paper, Fixing pins, Model eye
Interface cable, Barcode scanner
