Cutting-edge autorefraction and keratometry at hand
Accurate
Strongly agrees with subjective refraction
Cutting-edge design
Modern operator and patient experience
Easy to use
Intuitive design and controls

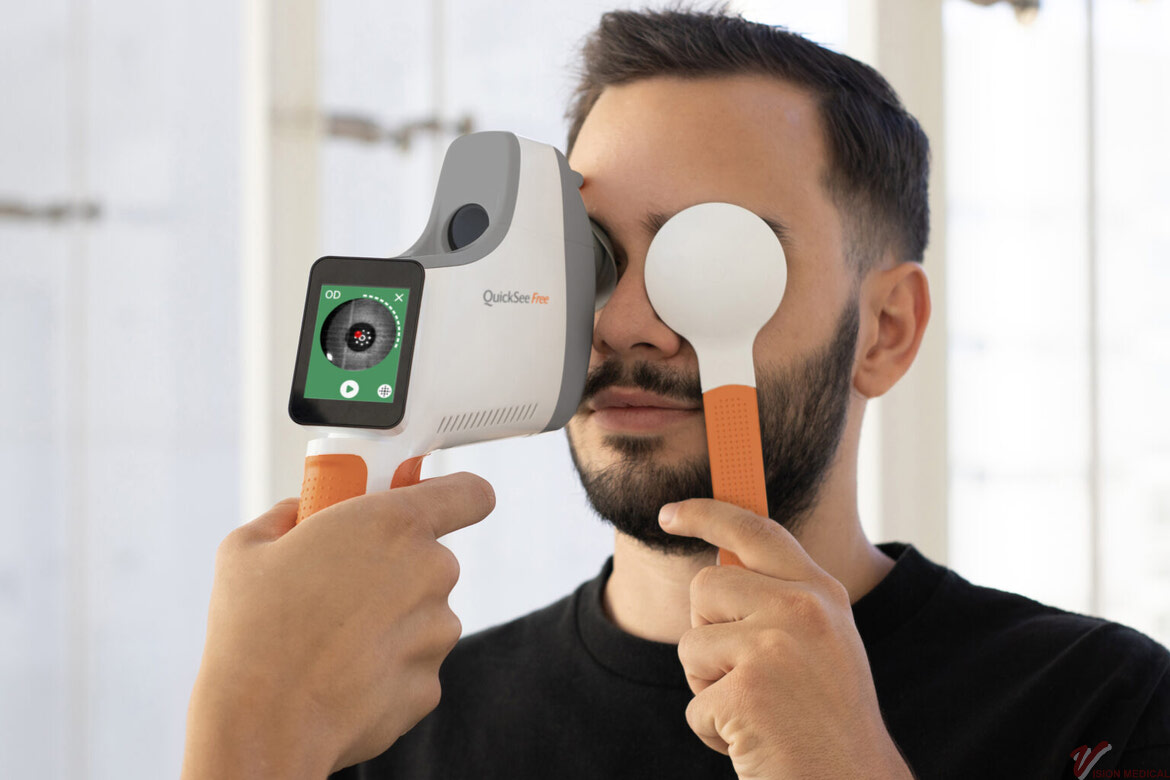

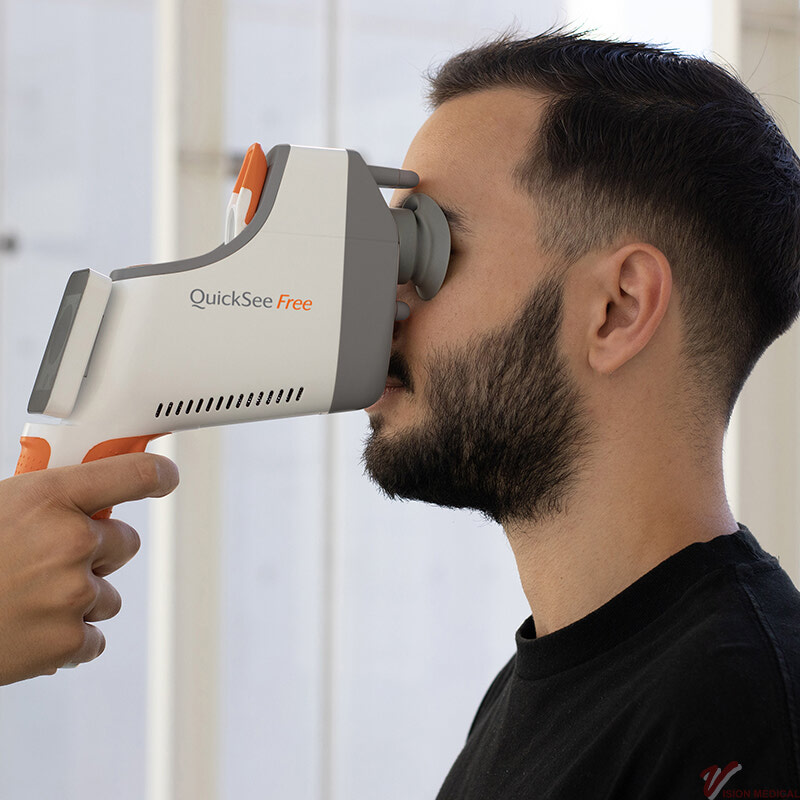

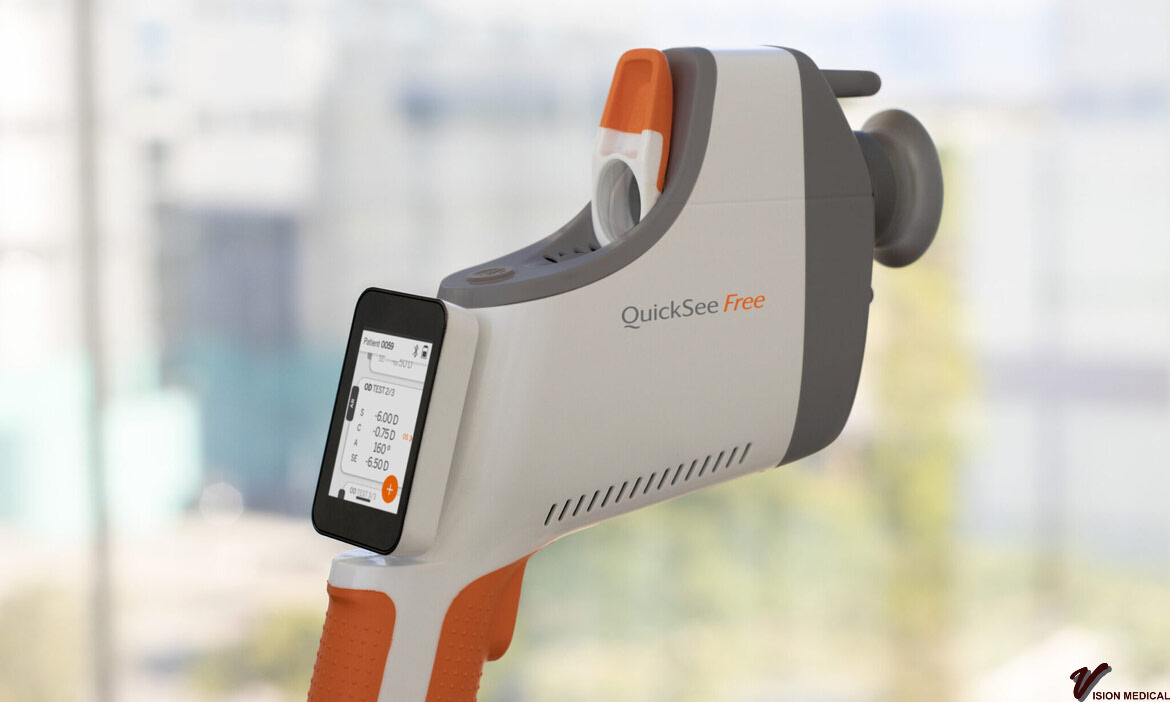

QuickSee Free Pro’s combination of the open view design, wavefront aberrometry, and innovative measurement algorithms produces clinically accurate autorefraction results, comparable to the best desktop autorefractors but in a compact, handheld format.
The patented PlenOptika Wavefront Refraction Engine™ precisely determines low-order refractive errors, demonstrating excellent agreement with subjective refraction.
QuickSee Free Pro’s technology has been clinically-evaluated in five IRB-based studies and documented in many peer-reviewed publications and conference abstracts. QuickSee Free has FDA Class I 510(k) exempt medical device registration.
QuickSee Free Pro advantages

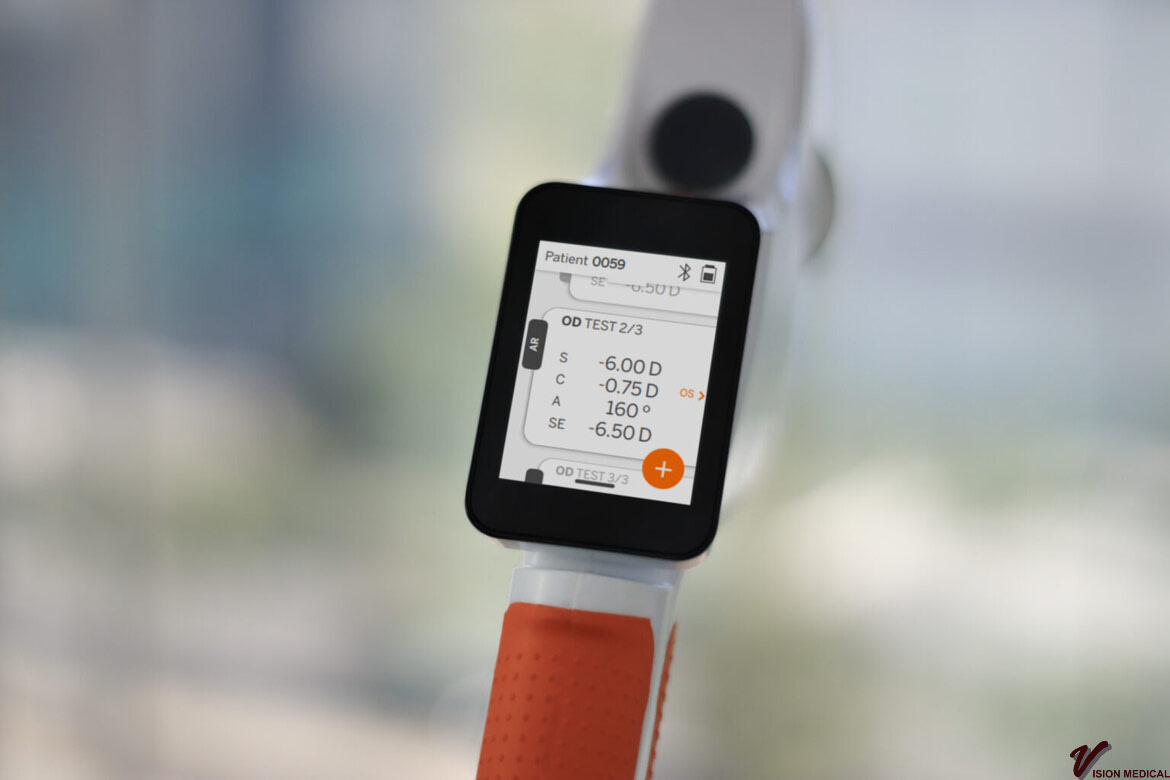

QuickSee Free Pro’s UI is clean, intuitive, and robust
FRIENDLY TO ALL KINDS OF PATIENTS
- Accessible for patients with mobility issues and/or physical challenges (ADA Compliant)
- Works with bedbound patients
- Fogging lenses for pediatric exams
EASY TO LEARN AND USE
- Operators can be up and running in minutes
- Pupil camera aids alignment
- Accelerates subjective refraction with a more accurate starting point
STRONG AGREEMENT WITH SUBJECTIVE REFRACTION
- <= 0.25 D: 70-75% of patients
- <= 0.5 D: 80-90% of patients (see publications)
FIELD DURABLE
- Calibration free
- Operates in humid and dusty environments
- Can be used indoors and outdoors, in most light settings
- Includes hardened carrying case
- Up to 8 hours continuous use on battery, operates while tethered for charging
Technical specifications
| AUTOREFRACTOR | |
| Pupil size | 2 to 8 mm |
| Intended patient population | >= 3 years |
| Accommodation control | Open view, Fogging lens (optional) |
| Cycloplegia requirement | None |
| Contact lens wearers (excluding multifocal lenses) |
Over-refraction compatible |
| Dilation requirement | None |
| Illumination requirement | None |
| Acquisition time | 10 seconds |
| Spherical range | -13D to +10D, increments of 0.01D, 0.125D, 0.25D |
| Cylindrical range | -8D to +8D, increments of 0.01D, 0.125D, 0.25D |
| Axial range | 0–180º, increments of 1º, 5º, 10º |
| Base technology | Wavefront aberrometry |
| KERATOMETER | |
| Radius of curvature | 5 to 12 mm in 0.01 mm increments |
| Corneal astigmatism | 0 D to +/- 8 D (R 5 to 12mm) |
| Center | Diameter 3.2 mm at Radius of curvature 8 mm |
General specifications
| Display properties | 2.4-inch LCD, capacitive touch screen, readable outdoors, true color (65,536 colors) |
| Charger properties | USB-C medical grade wall adapter, AC 100 to 240V, 50/60 Hz |
| Battery | 6 hours continuous use +/– 1 hour (10,000 mAh Li-ion); 5 hours charge time; IEC 62133-2:2017 certified |
| Calibration | Factory calibrated; no field calibration needed |
| Measurement capacity | Measurement storage capacity: > 10,000 measurements |
| Regulatory classification (medical device) |
Class I FDA (USA) |
| Laser safety | Class 1, IEC 60825-1:2014 certified |
| Weight | < 750 grams / 1.65 lbs |
| Dimensions | 30 cm (H) x 5.5 cm (W), 18 cm (L) |
