Accurate autorefraction anywhere
Lightweight
Desktop power in a handheld
Fast
Measurements in 10 seconds
Easy to use
Modern, intuitive operator and patient experience
RESEARCH AND DESIGN SUPPORTED IN PART BY

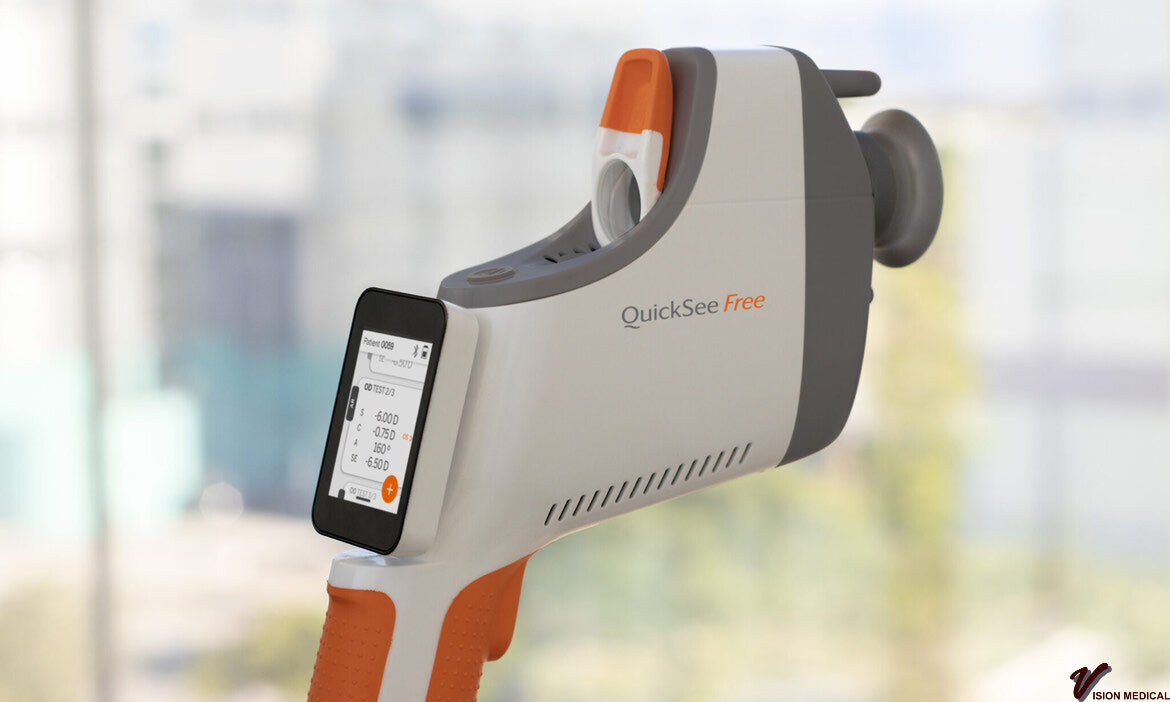

QuickSee Free’s combination of the open view design, wavefront aberrometry, and innovative measurement algorithms produces clinically accurate autorefraction measurements, in a durable handheld format suitable for use in clinics and in the field.
The patented PlenOptika Wavefront Refraction Engine™ precisely determines low-order refractive errors, making QuickSee Free as accurate as the high-end clinical desktop autorefractors and demonstrating excellent agreement with subjective refraction.
QuickSee Free’s technology has been clinically-evaluated in five IRB-based studies and documented in many peer-reviewed publications and conference abstracts. QuickSee Free has FDA Class I 510(k) exempt medical device registration.
QuickSee Free advantages

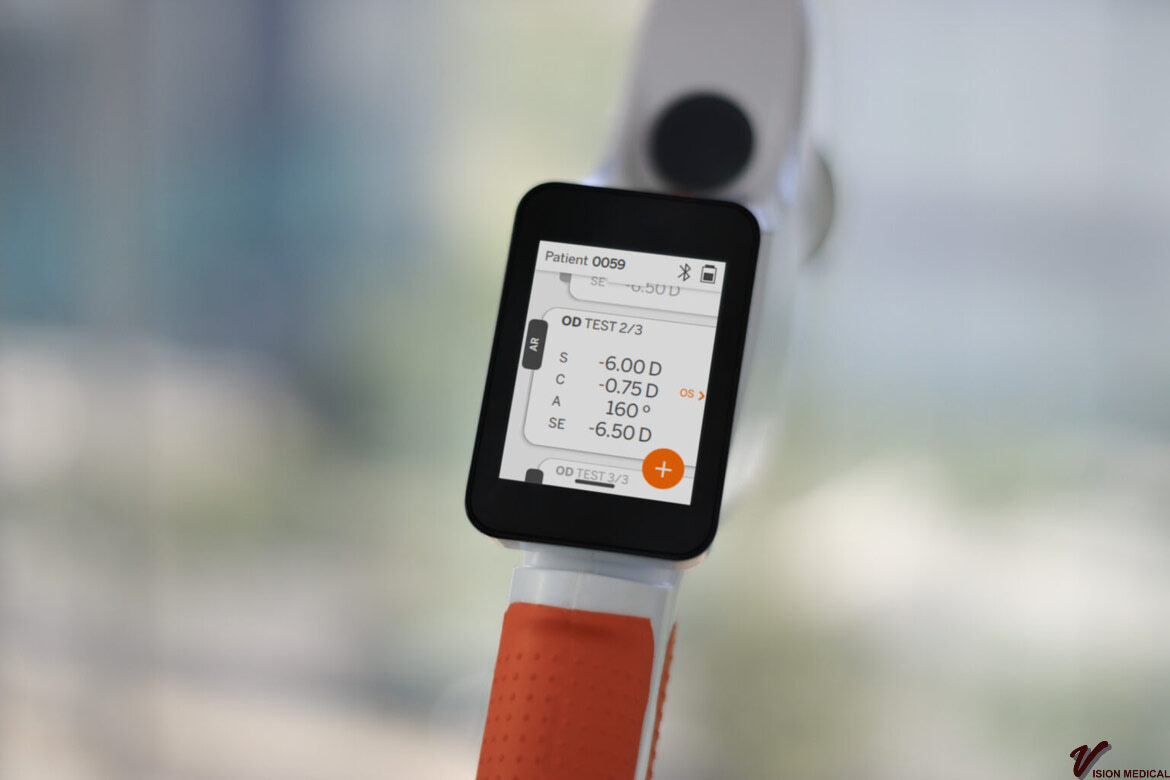

QuickSee Free’s UI is clean, intuitive, and robust
FRIENDLY TO ALL KINDS OF PATIENTS
- Accessible for patients with mobility issues and/or physical challenges (ADA Compliant)
- Works with bedbound patients
- Fogging lenses for pediatric exams
EASY TO LEARN AND USE
- Operators can be up and running in minutes
- Pupil camera aids alignment
- Accelerates subjective refraction with a more accurate starting point
STRONG AGREEMENT WITH SUBJECTIVE REFRACTION
- <= 0.25 D: 70-75% of patients
- <= 0.5 D: 80-90% of patients (see publications)
FIELD DURABLE
- Calibration free
- Operates in humid and dusty environments
- Can be used indoors and outdoors, in most light settings
- Includes hardened carrying case
- Up to 8 hours continuous use on battery, operates while tethered for charging
Technical specifications
| Pupil size | 2 to 8 mm |
| Intended patient population | >= 3 years |
| Accommodation control | Open view, Fogging lens (optional) |
| Cycloplegia requirement | None |
| Contact lens wearers (excluding multifocal lenses) |
Over-refraction compatible |
| Dilation requirement | None |
| Illumination requirement | None |
| Acquisition time | 10 seconds |
| Spherical range | -13D to +10D, increments of 0.01D, 0.125D, 0.25D |
| Cylindrical range | -8D to +8D, increments of 0.01D, 0.125D, 0.25D |
| Axial range | 0–180º, increments of 1º, 5º, 10º |
| Base technology | Wavefront aberrometry |
General specifications
| Display properties | 2.4-inch LCD, capacitive touch screen, readable outdoors, true color (65,536 colors) |
| Charger properties | USB-C medical grade wall adapter, AC 100 to 240V, 50/60 Hz |
| Battery | 6 hours continuous use +/– 1 hour (10,000 mAh Li-ion); 5 hours charge time; IEC 62133-2:2017 certified |
| Calibration | Factory calibrated; no field calibration needed |
| Measurement capacity | Measurement storage capacity: > 10,000 measurements |
| Regulatory classification (medical device) |
Class I FDA (USA) |
| Laser safety | Class 1, IEC 60825-1:2014 certified |
| Weight | < 750 grams / 1.65 lbs |
| Dimensions | 30 cm (H) x 5.5 cm (W), 18 cm (L) |
